OmegaBuckling

Overview

Section-based buckling capacity prediction of rack uprights using machine learning.

OmegaBuckling is an advanced machine learning-based tool for predicting the axial buckling capacity of cold-formed steel uprights used in storage rack systems. Developed from a rigorously validated dataset derived from experimental and numerical analyses, OmegaBuckling provides accurate estimations of critical buckling load based on geometric and material properties of rack sections.

The underlying model is based on a peer-reviewed scientific study published in a high-reputation academic journal, ensuring transparency, credibility, and engineering-grade accuracy for structural professionals and researchers alike.

Academic Publication:
B. Mammadli, C. Yazici, M. Gürbüz, İ. Kocaman, F. J. Domínguez-Gutiérrez, and F. Mehmet Özkal, "A data-driven machine learning approach for predicting axial load capacity in steel storage rack columns," Results in Engineering, vol. 28, p. 107475, Dec. 2025, doi:10.1016/j.rineng.2025.107475.

Core Features

Axial buckling load prediction for cold-formed steel uprights
Geometric and material parameter integration (e.g., thickness, inertia, length)
XGBoost regression model with high prediction accuracy
Real-time estimation without need for finite element modeling
Model explainability using feature importance analysis

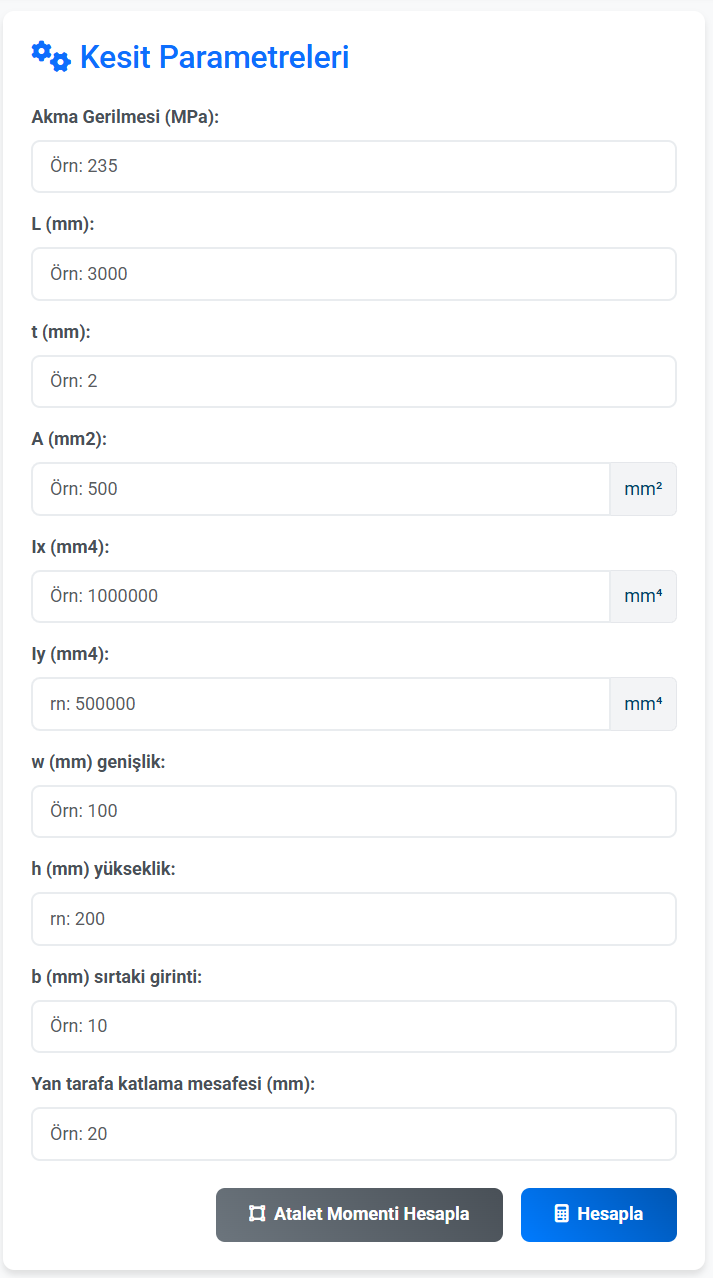

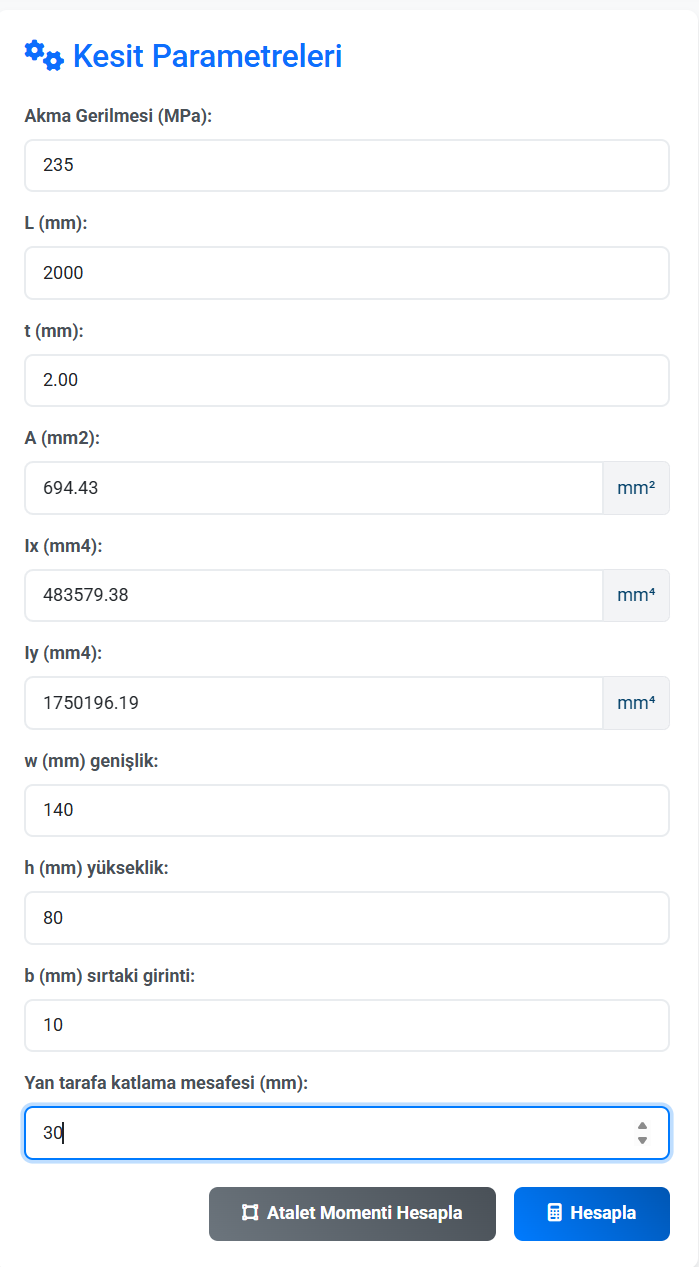

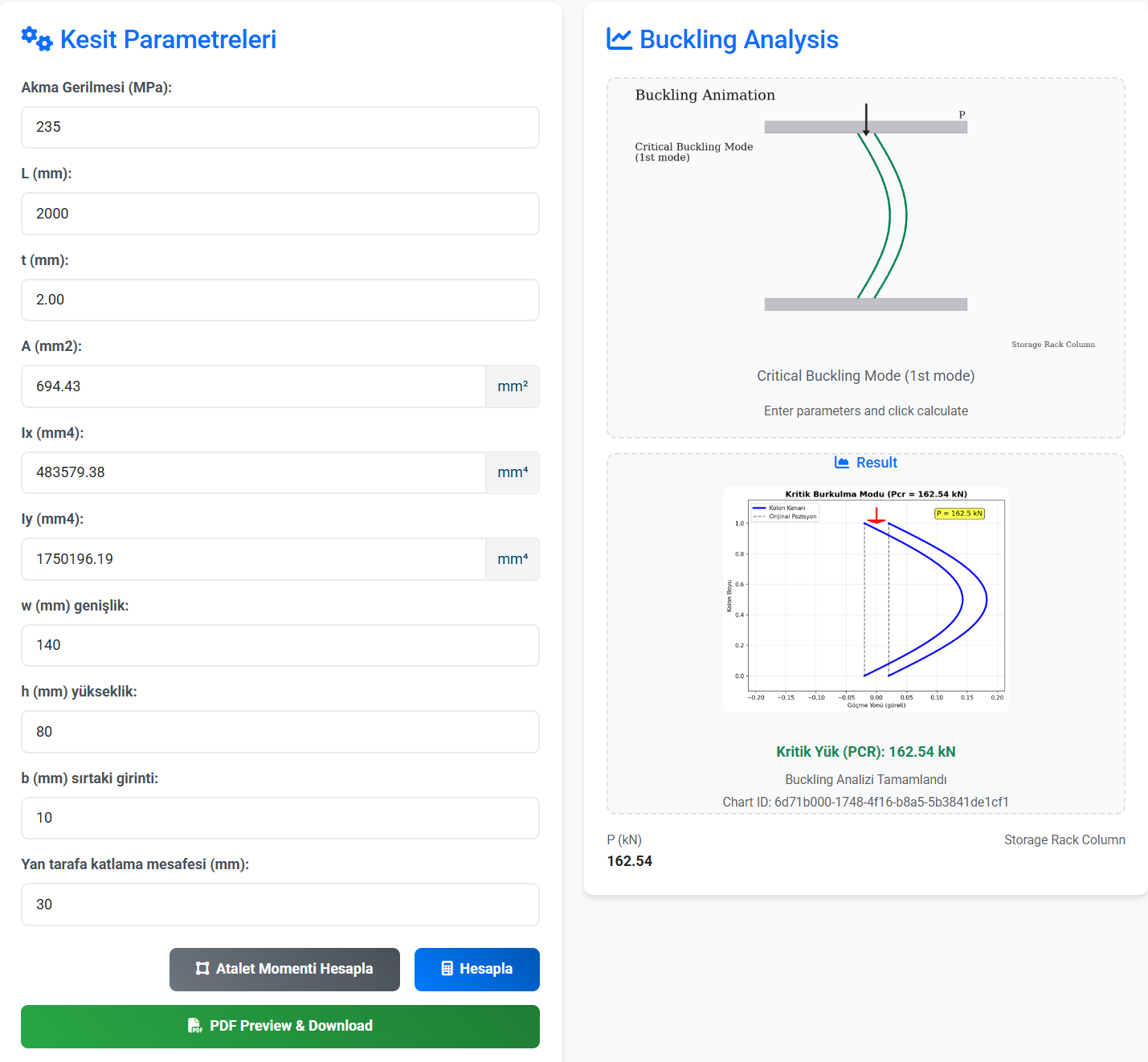

Input Parameters

Parameter	Description

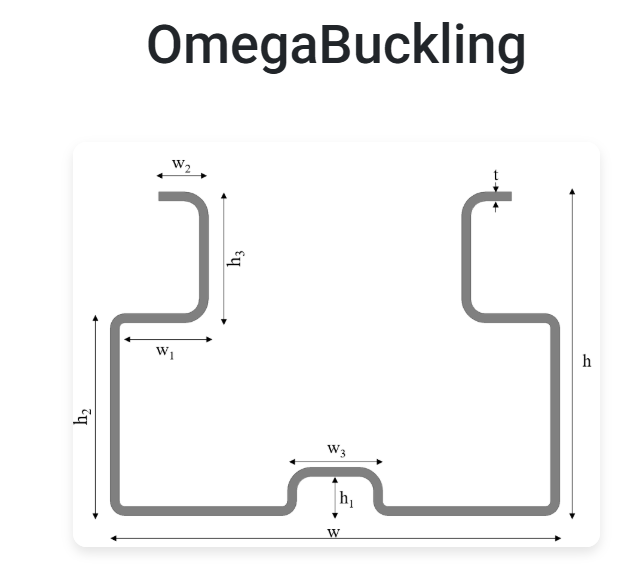

Cross-section dimensions	Width, height, and shape of upright
Material properties	Yield strength, modulus of elasticity
Upright length	Total height of the column

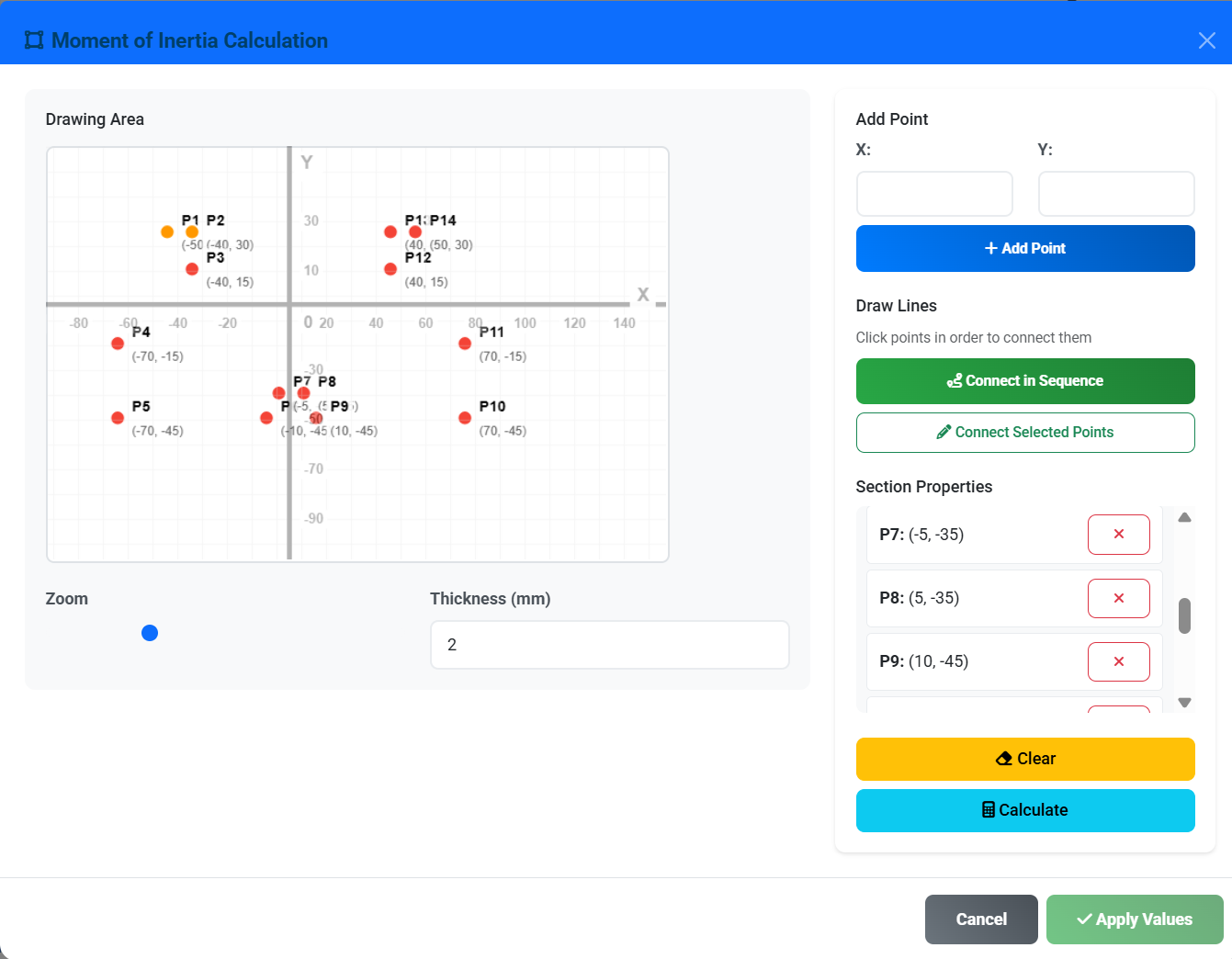

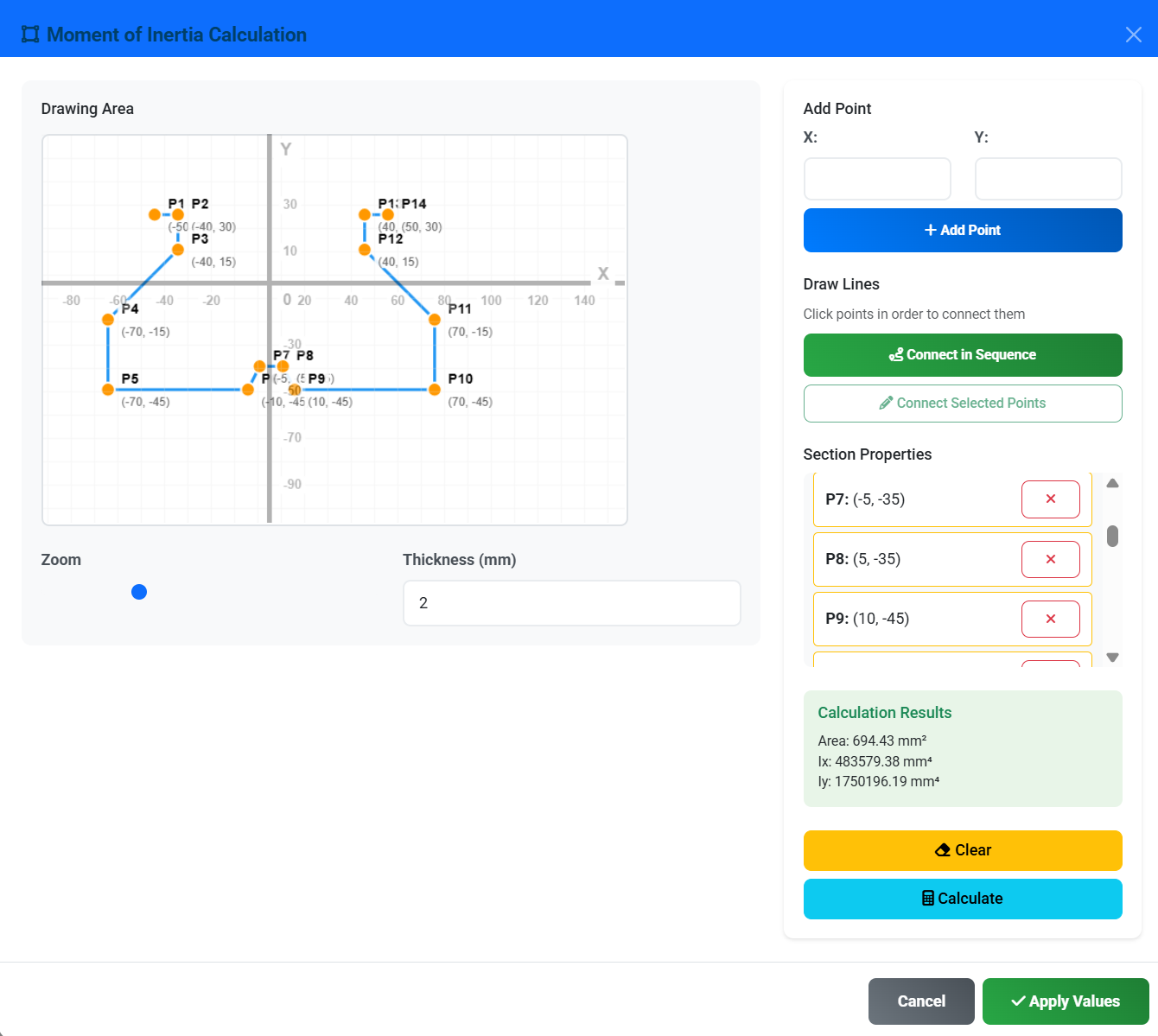

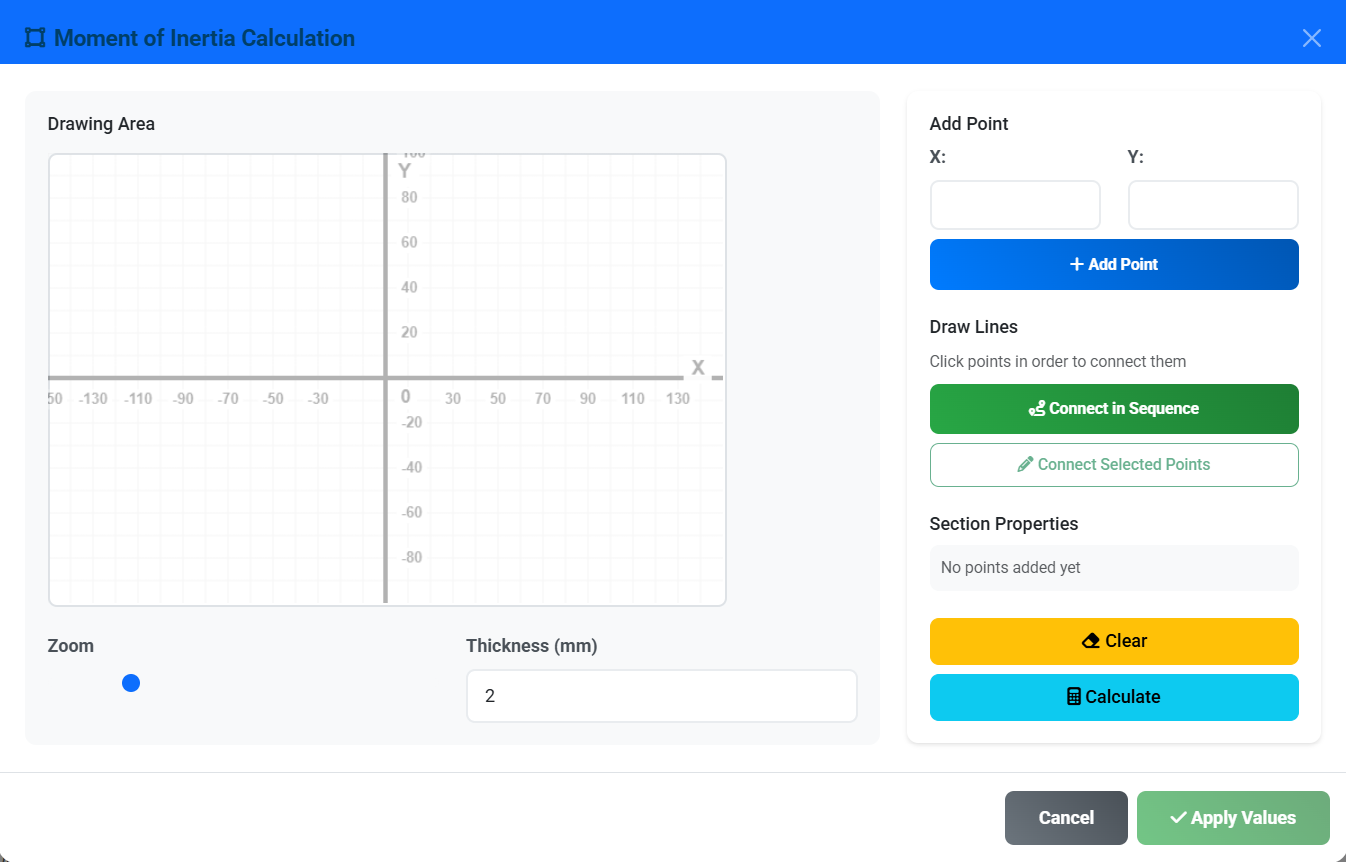

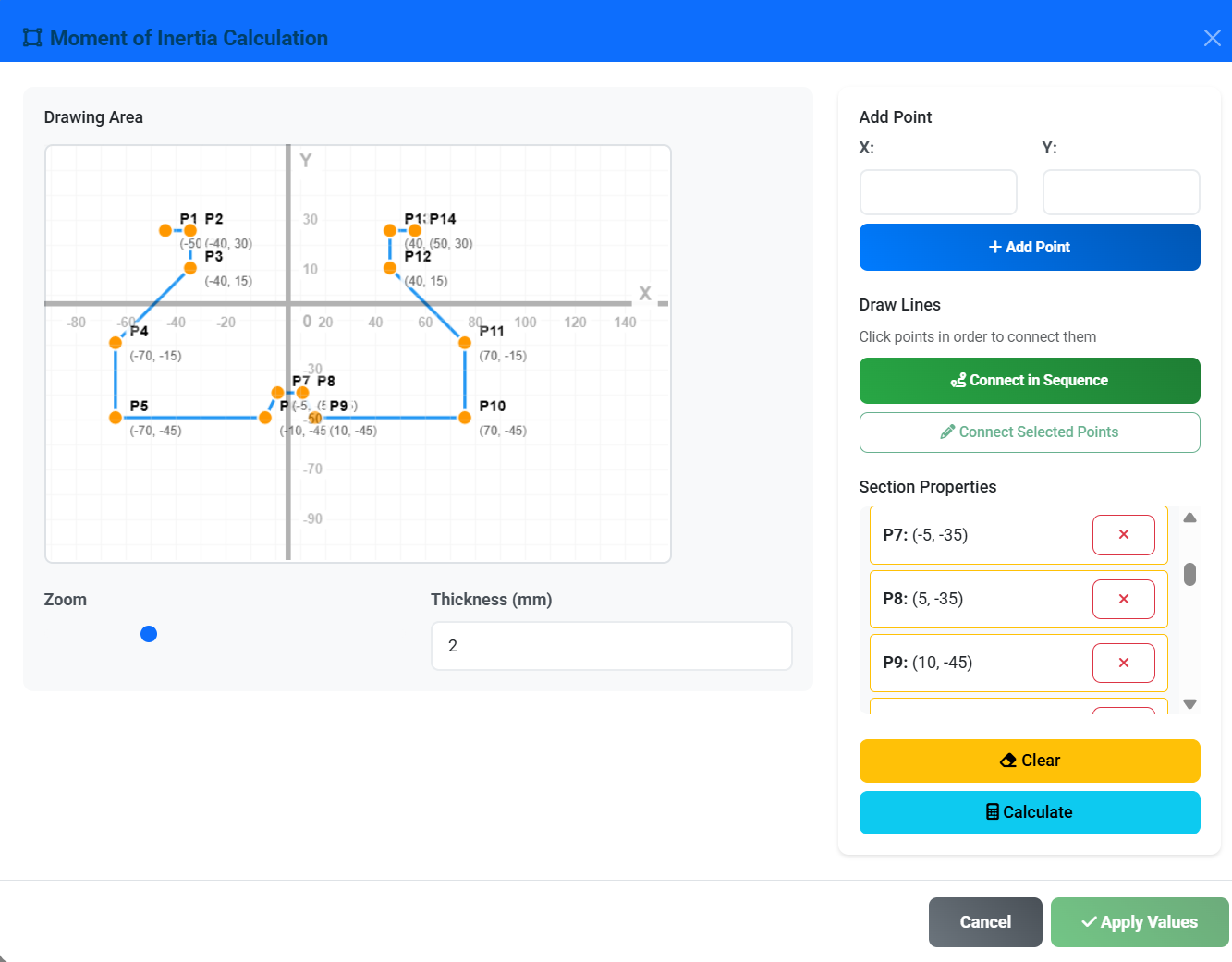

Moment of inertia	About the weak and strong axis
Torsional constant	Section warping characteristics

Output Parameters

Predicted axial buckling load (kN)
Normalized feature contributions

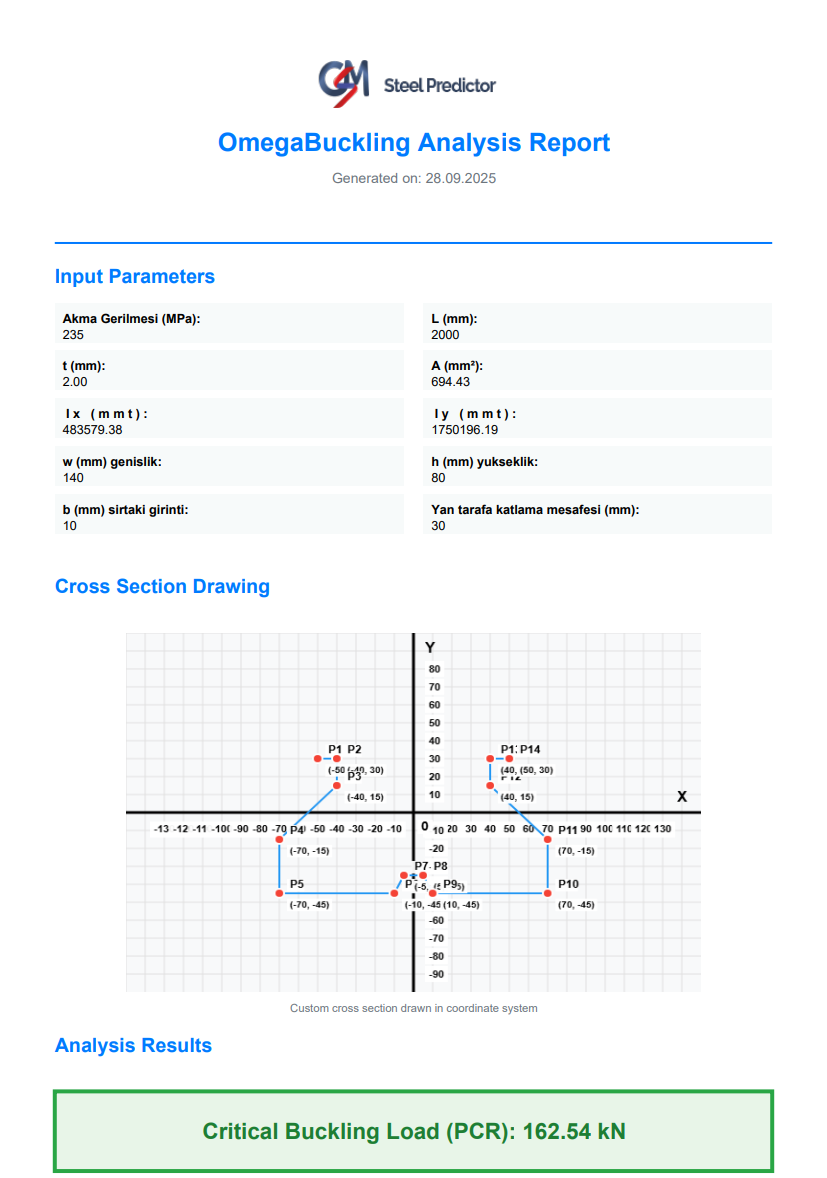

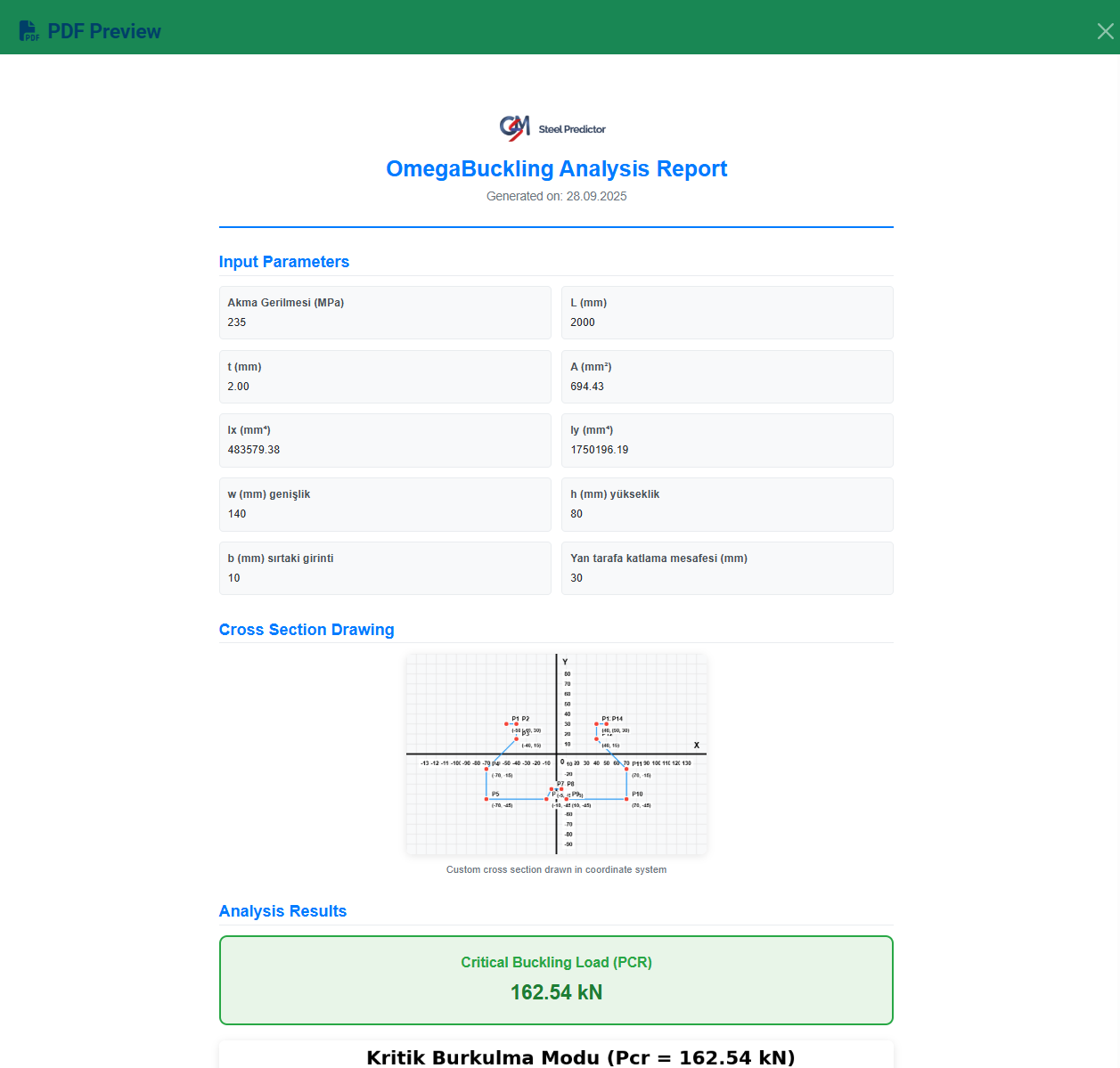

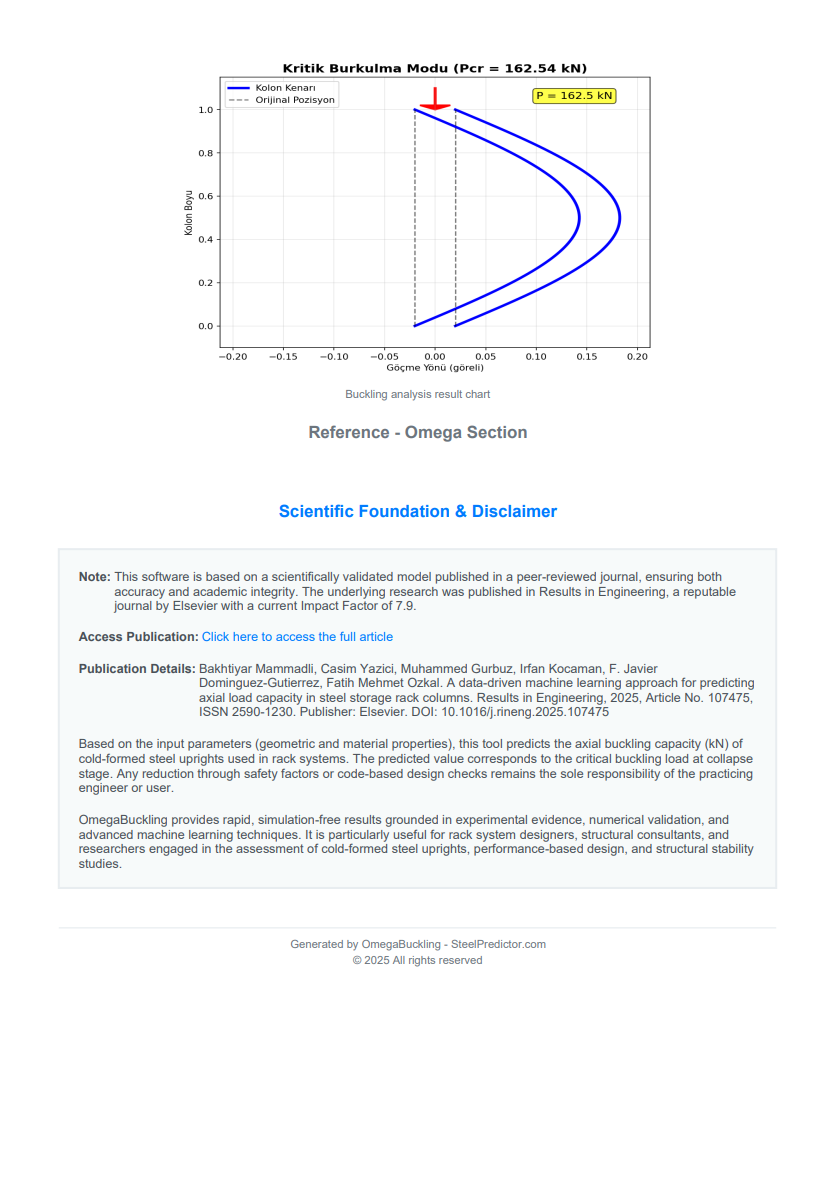

Exportable performance report (PDF/CSV)

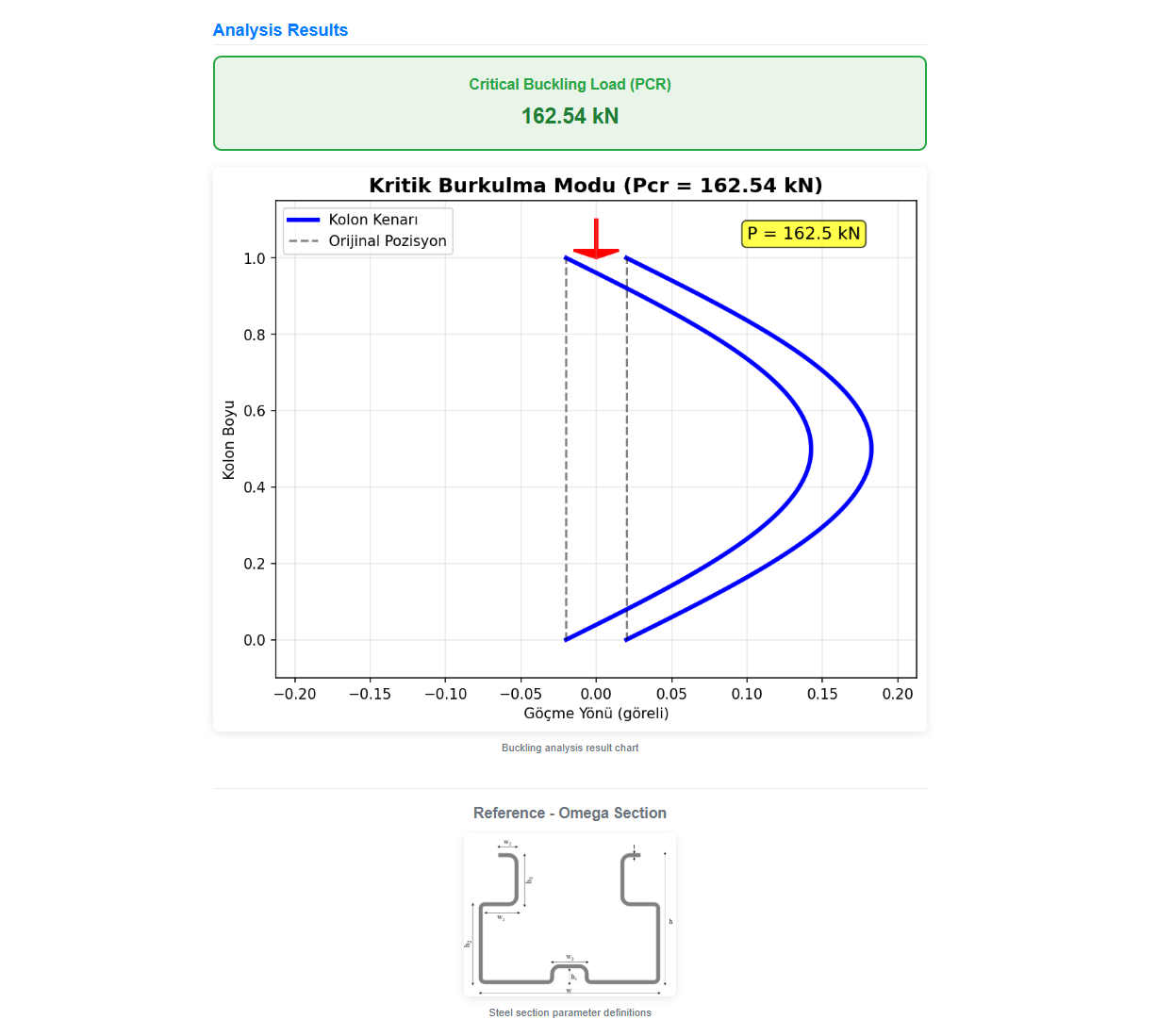

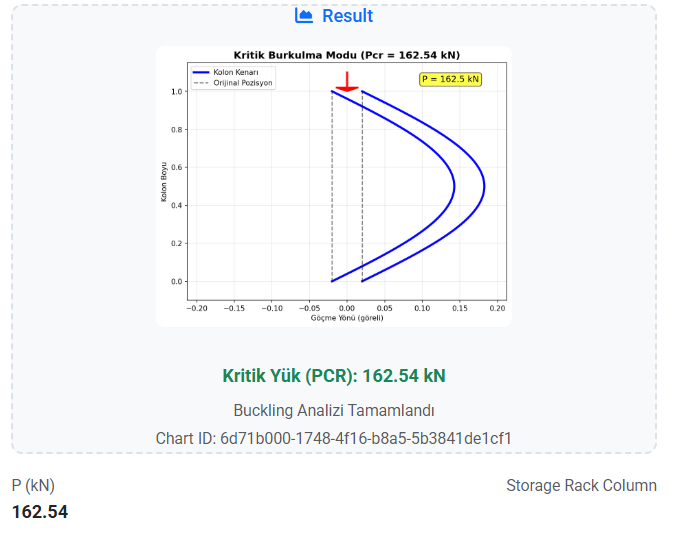

Visual chart of load vs. section geometry

Target Users

Rack system designers and engineers
Structural consultants
Cold-formed steel researchers
Warehouse infrastructure specialists

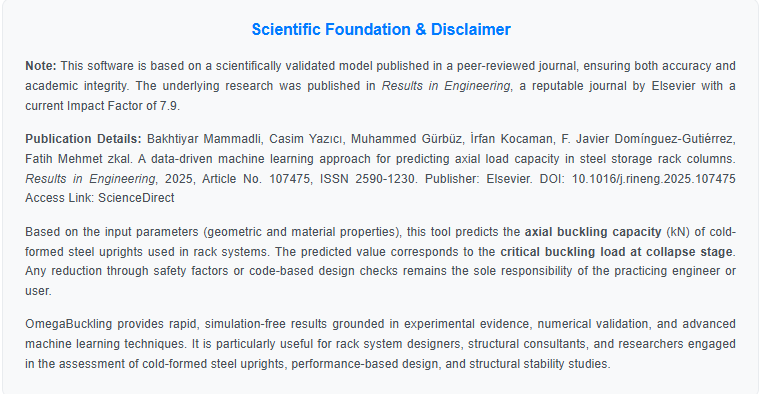

Disclaimer

This software predicts the buckling capacity of structural rack uprights based on data reflecting collapse-stage loading. Estimated capacities represent critical loads under idealized conditions.

All design decisions, safety factors, and regulatory checks must be independently evaluated and applied by the practicing engineer. The authors and developers assume no liability for misuse or misinterpretation.

The underlying model is academically validated and published in a reputable scientific journal: DOI: https://doi.org/10.1016/j.rineng.2025.107475
